Standard Duty (2438mm)
The StoreWALL Standard Duty 2438mm panel is our most recommended choice for covering a full garage wall. Twice the length of the 1219mm panel, it means fewer joins, faster installation, and better value per square metre — the practical choice for anyone fitting out a back wall or side wall of a standard double garage.
Specifications
- Dimensions: 2438mm L × 304.8mm H × 16.7mm thick
- Coverage: 0.74sqm per panel — 2.96sqm per carton of 4
- Material: solid-core extruded PVC — waterproof, weatherproof, mould-resistant
- Grooves: 4 per panel, 76mm on-centre pitch

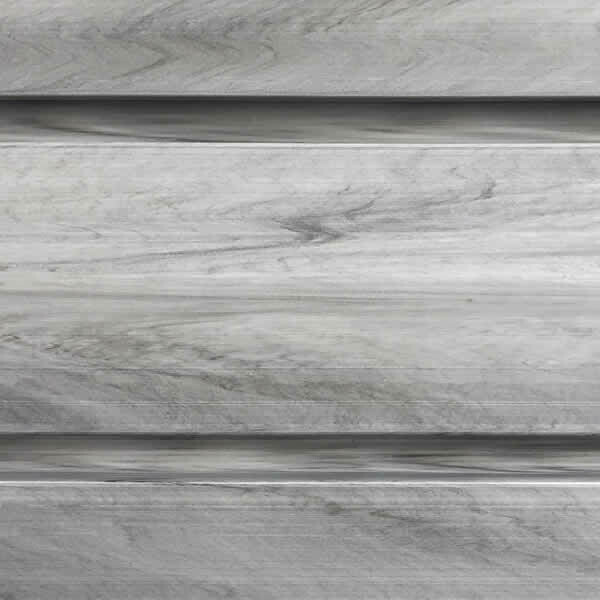

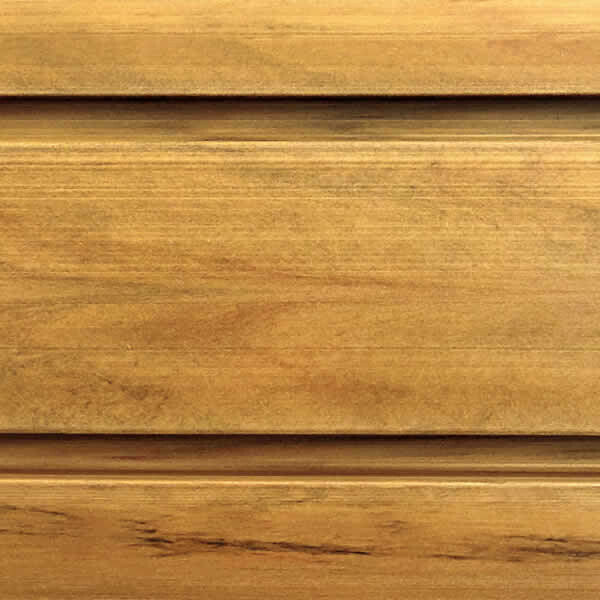

- Colours: Weathered Grey, Brite White, Black, Whitewood, Barnwood Grey, Graphite Steel, Rustic Cedar
- Warranty: 5 years on panels installed with StoreWALL accessories
Weight Capacity — 2438mm Panel
- With SD InstallStrips: 113KG at panel surface
- With SD InstallStrips: 52KG at 10cm from wall
- Face-screw only (no InstallStrips): all capacities reduced by approximately 75%
Why 2438mm Is the Better Choice for Most Garages
- Fewer joins — 2 × 2438mm panels covers 4.8m of wall with one join vs four panels and three joins using 1219mm
- Faster installation — 2 InstallStrips per panel across a full wall vs 8 InstallStrips for the same area in 1219mm panels
- Better value per sqm — 2.96sqm per carton vs 1.48sqm for the 1219mm carton
- Higher load distribution — 6 fixing points per panel vs 3, for more even load spread across the wall
The 1219mm panel remains the better choice for walls with obstacles — windows, power points, doors — or shorter walls where a 2438mm panel would require significant cutting.

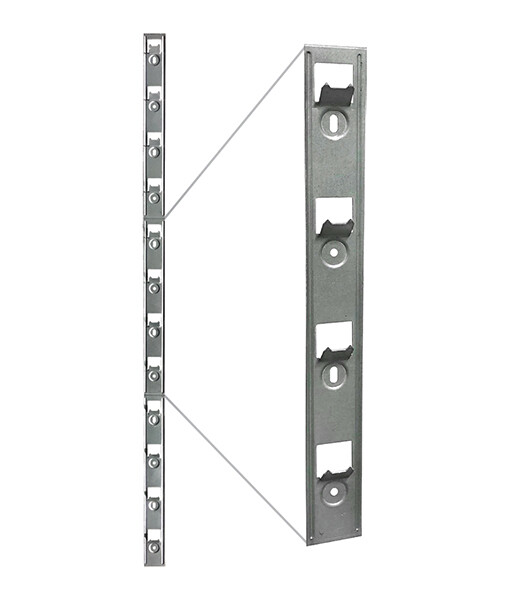

InstallStrips
Each 2438mm panel requires 2 × Standard Duty InstallStrips. The strip fixes to the wall first — the panel clips onto it for a clean face with no visible screws. Aim for 6 points of wall contact across the 2 strips.
Shipping Note
2438mm panels ship via common carrier freight due to their length — delivery timelines and costs may differ from 1219mm orders. See our delivery information or contact us for a freight estimate if you're in a regional area.
Not sure how many panels you need? Use the Wall Panel Estimator or request a free garage storage quote. Panels can be cut to size — we also offer a free cutting service. Note: 2438mm panels are sold in cartons of 4 only — individual panels are not available.
