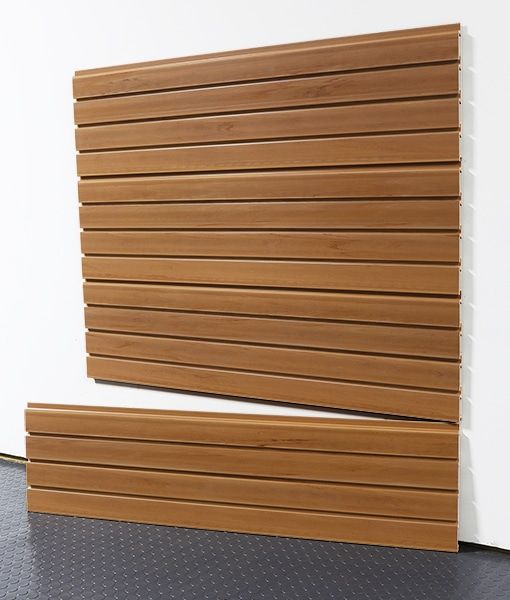

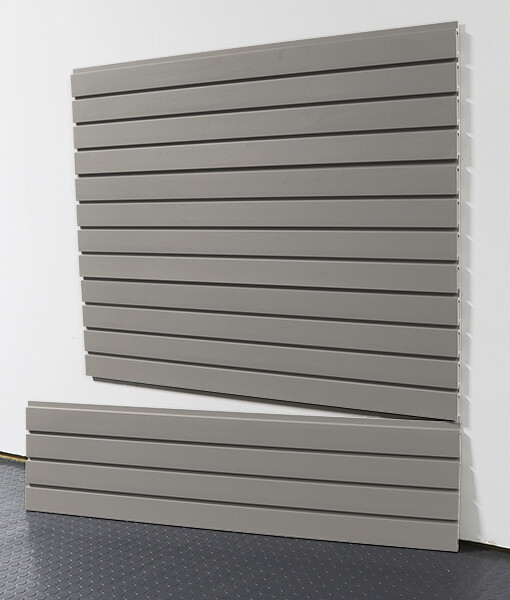

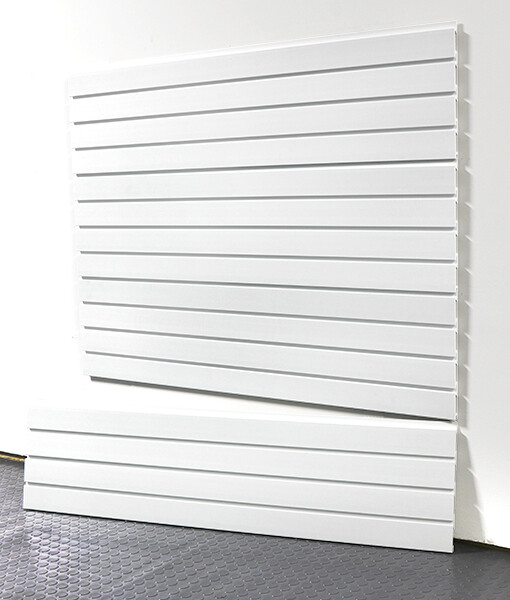

The StoreWALL Standard Duty 1219mm panel is our most popular panel and the starting point for most Australian garage storage installations. Solid-core PVC, four grooves per panel, and compatible with all StoreWALL CamLok accessories. Available in 7 colours — the widest colour range in the StoreWALL panel lineup.

Specifications

• Dimensions: 1219mm L × 304.8mm H × 16.7mm thick
• Coverage: 0.37sqm per panel — 1.48sqm per carton of 4
• Material: solid-core extruded PVC — waterproof, weatherproof, mould-resistant
• Grooves: 4 per panel, 76mm on-centre pitch
• Colours: Weathered Grey, Brite White, Black, Whitewood, Barnwood Grey, Graphite Steel, Rustic Cedar
• Warranty: 5 years on panels installed with StoreWALL accessories

Weight Capacity — 1219mm Panel

• With SD InstallStrips: 56KG at panel surface
• With SD InstallStrips: 26KG at 10cm from wall
• Face-screw only (no InstallStrips): all capacities reduced by approximately 75%

1219mm vs 2438mm — Which Length?

Both lengths are the same panel — same height, same material, same CamLok compatibility. The 1219mm panel is more manageable to handle solo and easier to cut around obstacles like windows, doors and power points. The 2438mm panel covers more wall in fewer pieces, has fewer joins, and is better value per sqm — the preferred choice for a full back wall of a double garage. Both lengths can be used on the same wall as rows align correctly.

InstallStrips

Standard Duty InstallStrips are 914mm long and fix to the wall first — the panel clips onto them for a clean face with no visible screws and significantly higher accessory weight capacity than face-screw installation. One InstallStrip per 1219mm panel. Each strip can be broken into 609mm or 304mm sections for flexible installation around studs.

Individual panels are also available for top-ups and small additions — see the single panel listings in this category. Not sure how many panels you need? Use the Wall Panel Estimator or request a free garage storage quote.

Standard Duty Video
