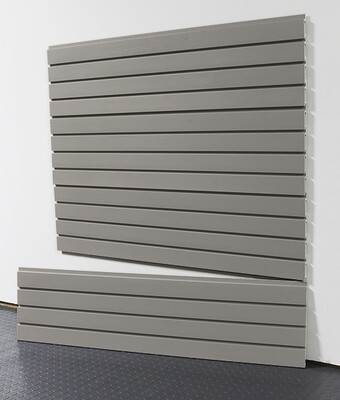

Weathered Grey Slatwall Panels — Standard Duty 1219mm Carton of 4 | StoreWALL

Weathered Grey Slatwall Panels — Standard Duty 1219mm, Carton of 4

Our Weathered Grey StoreWALL panels are one of our most popular wall panel products. The Standard Duty Weathered Grey panel is a great fit for any external storage facility including garages, sheds and workshops. All StoreWALL garage wall panels are made from solid-core extruded PVC, fully weatherproof, and compatible with the complete CamLok accessory range.

Each carton contains 4 panels and covers 1.48sqm of wall. Install across multiple rows to cover your full wall height, combining 1.2m and 2.4m lengths as needed to manage wall width and minimise joins.

Note: Why Weathered Grey? Our Weathered Grey panels are a colour match for all StoreWALL accessories (also grey). The Grey colour will mask the regular dust collected in your garage and will mask light marks on the panels made from storing your items against the wall. Our Grey is a similar colour to a Primer Grey.

Panel Specifications

Installation — Two Methods

Method 1: InstallStrips (Recommended)

InstallStrips are galvanised metal strips that screw to your wall studs first — the panel then clicks onto the strip. No screw heads visible through the panel face. Load is distributed across multiple fixing points along the strip, giving you significantly higher accessory weight capacities than face-screw installation.

• 1 × Standard Duty InstallStrip required per 1.2m panel (sold separately)
• Each 914mm InstallStrip can be broken into 609mm or 304mm sections for fitting around studs
• Use 8g × 40mm screws to fix each InstallStrip to your wall studs
• Aim for 3 points of wall-stud contact per panel
• Works on stud walls, brick, concrete, and masonry — use appropriate fasteners for each surface

Method 2: Colour-Matched Face Screws

Panels can be fixed directly through the face using Grey colour-matched screws — approximately 20 screws per 1.2m panel. Faster to install, but screw heads will be visible on the panel face. Weight capacities for all accessories are reduced by approximately 75% compared to InstallStrip installation.

For any application involving bikes, ladders, tools, or anything with significant weight, InstallStrips are strongly recommended.

How Many Panels Do You Need?

Use the formula below as a starting point, then use our Panel Calculator to confirm your order quantity:

• Measure your wall width × desired panel height in metres = total sqm required
• Divide by 1.48sqm (coverage per 1.2m carton) and round up to the next whole carton
• Standard double garage back wall (5.4m wide × 2.0m panel height): approx. 7–8 cartons of 1.2m panels, depending on rows
• For large walls, consider mixing with 2.4m panels to reduce joins — each 2.4m carton covers 2.96sqm

Our Panel Calculator handles this automatically — enter your wall dimensions and it outputs the exact number of cartons and InstallStrips needed. Please also call us or send a quote request.

CamLok Accessory Compatibility

Standard Duty panels use the universal 76mm on-centre groove pitch — compatible with all StoreWALL CamLok hooks, shelves, brackets, bins, and baskets. Also compatible with:

• MKE Milwaukee Slatwall accessories
• StorEase Smart Wall Panel accessories (the wider aluminium Bunnings panel)
• HandiWall, Diamond Life, GarageTek, Garagesmart, and New Age branded accessories

Incompatible systems: Flowwall, Crownwall, Gladiator GearWall, Proslat, Rubbermaid (all proprietary groove dimensions). Not compatible with the StorEase Slimline Smart Rail.

Weathered Grey vs Other Colours

Weathered Grey are our most popular colours. The practical difference:

• Weathered Grey: neutral tone that reads as 'workshop' rather than 'showroom'. Hides dust and minor marks better than white. The most popular colour in darker or more industrial settings.
• Brite White: high-contrast background — hooks, labels, and products stand out clearly against the panel. Suits well-lit spaces, modern aesthetics, and garages adjacent to living areas.
• Other colours (Barnwood Grey, Whitewood, Rustic Cedar, Graphite Steel, Black): available in the same Standard Duty 1.2m carton — see colour options above.

Frequently Asked Questions

How many panels do I need for a standard Australian double garage?
A standard double garage back wall is approximately 5.4m wide. If you want to cover the wall to a height of 2.0m, you need approximately 10.8sqm of panel. Each 1.2m carton covers 1.48sqm, so you'd need approximately 8 cartons. Most customers run 3–4 rows of panels per wall — we recommend using the Panel Calculator for an accurate carton count based on your exact dimensions.

Do I need to buy InstallStrips separately?
Yes — InstallStrips are not included in the panel carton and must be ordered separately. For a 1.2m carton (4 panels), order 4 × Standard Duty InstallStrips. InstallStrips are strongly recommended: they provide a clean, screw-free finish and increase accessory weight capacities by approximately 4× compared to face-screw installation.

Can I cut StoreWALL panels to fit around windows or doors?
Yes. Standard Duty PVC panels cut cleanly with a circular saw, jigsaw, or multi-tool. We also offer a free panel cutting service — contact us before placing your order if you need panels cut to specific lengths.

Will these panels work on a brick or concrete garage wall?
Yes. InstallStrips can be fixed to brick, concrete block, masonry, timber studs, or plasterboard walls. For brick and concrete, use masonry anchors or nail anchors in place of standard wood screws. The installation method is the same — the InstallStrip attaches to the wall first, and the panel clips onto it.

Are these panels compatible with my existing slatwall accessories?
If your accessories are designed for standard 76mm on-centre slatwall, yes — StoreWALL Standard Duty panels are compatible. This includes StorEase Smart Wall Panel accessories (from Bunnings), MKE Milwaukee Slatwall accessories, HandiWall, Garagesmart, GarageTek, Diamond Life, and New Age accessories. StoreWALL's own CamLok accessories are always compatible. If you're unsure about your existing accessories, send us a photo and we'll confirm before you order.

What is the maximum weight these panels can hold?
Weight capacity depends on how the panels are installed. With Standard Duty InstallStrips properly fixed into wall studs: 56kg at 100mm from the panel surface per 1.2m panel, and 113kg at the panel surface per 2.4m panel. Without InstallStrips (face-screw installation only): reduce these figures by approximately 75%. Capacity is also affected by how weight is distributed — always spread load across multiple accessories rather than concentrating it on a single hook.
