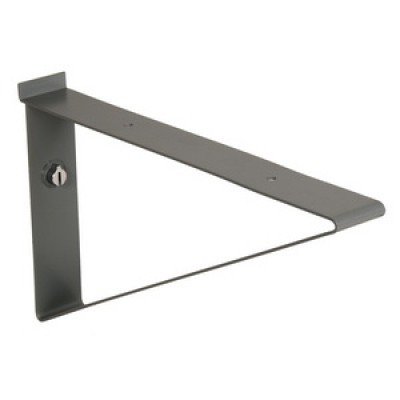

The StoreWALL Heavy Duty 381mm Bracket is the deeper option in the bracket range — 127mm longer than the 254mm bracket, giving you more reach from the wall for deeper shelving applications, larger items and the 400mm Deep Floating Metal Shelf. Solid powder-coated steel with CamLok™ pre-installed, each bracket locks securely into any StoreWALL slatwall panel and repositions tool-free in seconds.
Pair with StoreWALL's 400mm Deep Floating Metal Shelf for a ready-made solution, or build your own shelf up to 391mm deep using the drill holes on the bracket arm. Sold individually — minimum two brackets required per shelf.
What Can the 381mm Bracket Do?
- Floating garage shelves — pair two or more brackets to support the 400mm Deep Metal Shelf, or your own timber or metal cut to size up to 391mm deep
- Horizontal bike storage — store bikes flat against the wall with the frame resting on padded brackets. Add optional foam non-slip padding to protect your bike frame
- General storage — support timber, containers, large sporting equipment and workshop supplies directly on the longer bracket arm
How Many Brackets Do I Need for a Shelf?
- Up to 1.2m wide — use at least 2 brackets
- Up to 1.8m wide — use at least 3 brackets
- Up to 2.4m wide — use at least 4 brackets
Maximum shelf depth: 391mm. If building your own shelf, ensure the material does not exceed this depth. The bracket has drill holes for secure shelf attachment.
Specifications
← Swipe for full table →
| Specification | Detail |
|---|---|
| SKU | BR-HD15 |
| Length | 381mm |
| Load rating per bracket | 34kg |
| Load rating per pair | 68kg — panels installed with InstallStrips, brackets spaced up to 1.2m apart |
| Maximum shelf depth | 391mm |
| Material | Solid powder-coated steel |
| Panel compatibility | Standard Duty, Heavy Duty StoreWALL panels, and MKE Slatwall panels |
| Mounting | CamLok™ pre-installed — quarter-turn locking, tool-free repositioning |
| Optional extra | Foam non-slip padding (+$2.50) — add at checkout to protect bike frames and prevent shelf items sliding |
| Sold as | Single bracket — minimum 2 required per shelf |
Compatible Shelves

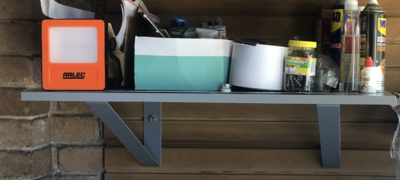

- 400mm Deep Floating Metal Shelf — designed to fit the 381mm bracket; the recommended ready-made shelf pairing
- Custom timber, MDF or metal shelving cut to a maximum depth of 391mm
254mm vs 381mm — Which Bracket?
- 254mm Bracket — 34kg per bracket; suits the 812mm and 1219mm floating plastic shelves and shallower custom shelving up to 254mm deep
- 381mm Bracket (this product) — 34kg per bracket; suits the 400mm Deep Metal Shelf and deeper custom shelving up to 391mm deep
The two bracket sizes are not interchangeable with each other's shelves — always match the bracket to the shelf. The 254mm plastic floating shelves require 254mm brackets; the 400mm Deep Metal Shelf requires 381mm brackets.
