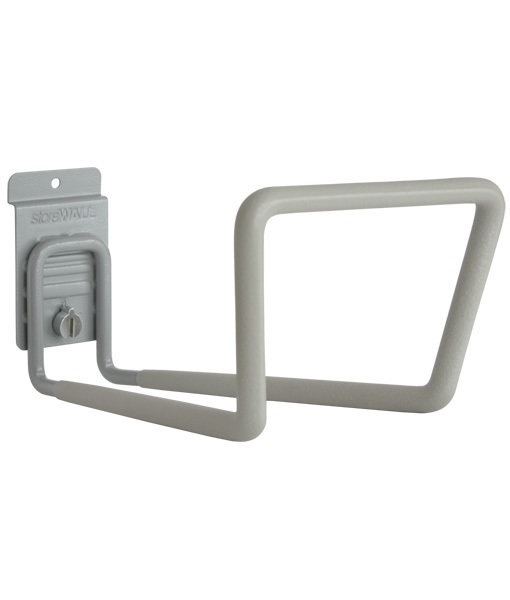

StoreWALL Heavy Duty Utility Hook
The Heavy Duty Utility Hook has the widest opening in the StoreWALL hook range — 177mm across at its widest point. That width makes it the right choice for bulky items that won't fit narrower hooks: step ladders, extension ladders (use two hooks), large timber lengths, pressure washer hoses, coiled rope, and any item that needs a wide cradle rather than a narrow point of contact.
At 228mm deep and 68kg capacity it reaches further from the wall and holds more weight than any standard single hook in the range. CamLok™ pre-installed. Sold as a single hook.
Specifications
← Swipe for full table →
| Specification | Detail |
|---|---|
| SKU | HK-HDUTIL |
| Dimensions | 139mm H × 177mm W × 228mm D |
| Opening width | 177mm — widest hook in the StoreWALL range |
| Weight capacity | 68kg — panels installed with InstallStrips |
| Mounting | CamLok™ pre-installed — locks directly into StoreWALL slatwall grooves |
| Panel compatibility | Standard Duty, Heavy Duty StoreWALL panels, and MKE Slatwall panels |
| Repositionable | Yes — quarter-turn CamLok releases and relocks tool-free |
| Sold as | Single hook |
What the HD Utility Hook is best for
- Step ladders — wide opening cradles the ladder frame securely at a rung or side rail
- Extension ladders — use two hooks spaced along the ladder length for stable wall storage

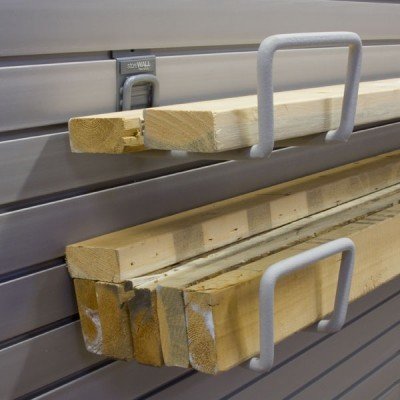

- Large timber lengths — offcuts and longer boards stored horizontally on two hooks

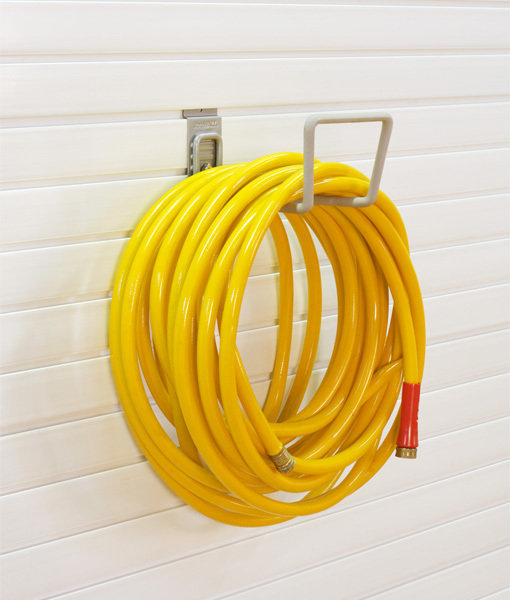

- Pressure washer hoses — wide coiled hose sits comfortably in the 177mm opening
- Coiled rope and tow straps — thick or heavy coils that overhang narrower hooks
- Pool cleaning equipment — poles, nets, and hoses hung by the frame
- Large garden equipment frames — wheelbarrow handles, cart frames, and bulky outdoor items
HD Utility Hook vs HD Universal Hook — choosing between them
Both are heavy-duty hooks with CamLok, but they serve different purposes:
- HD Utility Hook (this product) — 177mm wide, 228mm deep, 68kg. Wide U-shape suits bulky items that need a broad cradle — ladders, timber, coiled hose.
- HD Universal Hook — 63mm wide, 228mm deep, 80kg. Narrow U-shape suits items hung by a handle or loop — ladders by a rung hole, tools by a grip.
For a step ladder, the HD Utility Hook cradles the frame better. For an extension ladder hung by a rung, the HD Universal Hook's narrower profile may suit better. For timber lengths, use two HD Utility Hooks spaced along the board.
Frequently asked questions
How many hooks do I need for a ladder?
One hook for a lightweight step ladder. Two hooks for a standard extension ladder — space them at roughly one-quarter and three-quarters of the ladder's length for even weight distribution.
Can it store large timber offcuts?
Yes — rest long timber lengths horizontally across two HD Utility Hooks spaced along the wall. The 68kg capacity per hook (136kg across two) handles most standard timber lengths comfortably.
Is it compatible with all StoreWALL panels?
Compatible with Standard Duty, Heavy Duty StoreWALL panels, and MKE Slatwall panels. The CamLok fits the same 76mm on-centre groove pitch across all three.
What's the difference between this and the HD Universal Hook?
The HD Utility Hook is 177mm wide — suited to bulky items needing a broad cradle. The HD Universal Hook is 63mm wide and 80kg rated — suited to items hung by a handle or loop where a narrower profile is more practical.
